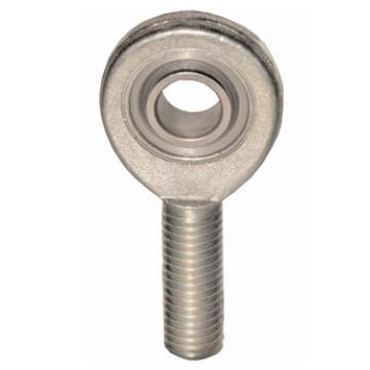

GAR-15-UK 15mm Right Hand Rod End Bearing

Weight (Kg) :0.00

GAR-15-UK 15mm Right Hand Rod End Bearing

GAR-Series is our 3 piece large bore range of male rod ends, incorporating a 2 piece spherical bearing with a PTFE liner that is staked into the forged steel housing. Suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction.

Materials
  • Housing: Forged Steel 080M46, Zinc plated white & blue passivate (silver/clear).
  • Inner Ring: Steel 080M46.
  • Ball: Bearing Steel lOOCr6, case hardened & electra-less Nickel plated.
  • Liner: PTFE fabric.

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -30°C to + 120°C

    • GAR-15-UK 15mm Right Hand Rod End Bearing

    Attribute Value
    Housing Depth (H) 10
    Thread Direction Right Hand
    Length of Thread (L2) 20
    Shaft Centre Height (L1) 63
    Bore Size 15
    Thread M14x2.00
    Ball Width (W) 12
    Housing Dia (D) 40
    O 16.9
    Qty

    £9.56
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
