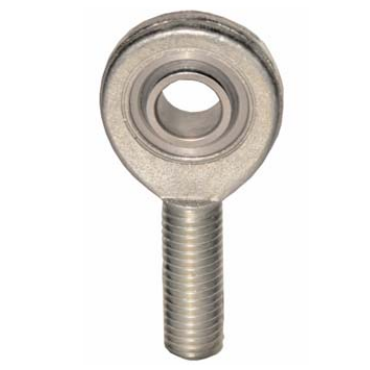

GAR-12-UK 12mm Right Hand Rod End Bearing

Weight (Kg) :0.00

GAR-12-UK 12mm Right Hand Rod End Bearing

GAR-Series is our 3 piece large bore range of male rod ends, incorporating a 2 piece spherical bearing with a PTFE liner that is staked into the forged steel housing. Suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction.

Materials
  • Housing: Forged Steel 080M46, Zinc plated white & blue passivate (silver/clear).
  • Inner Ring: Steel 080M46.
  • Ball: Bearing Steel lOOCr6, case hardened & electra-less Nickel plated.
  • Liner: PTFE fabric.

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -30°C to + 120°C

    • GAR-12-UK 12mm Right Hand Rod End Bearing

    Attribute Value
    Housing Depth (H) 8
    Thread Direction Right Hand
    Length of Thread (L2) 18
    Shaft Centre Height (L1) 54
    Bore Size 12
    Thread M12x1.75
    Ball Width (W) 10
    Housing Dia (D) 34
    O 15.4
    Qty

    £8.53
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
