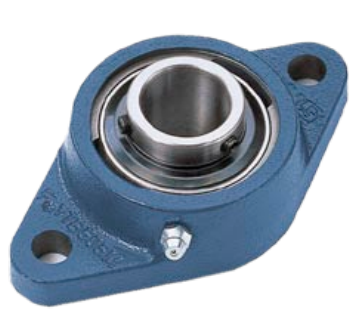

FYTJ30KF SKF 15/16inch 2 Bolt Flange Bearing with Adapter Sleeve
Weight (Kg) :0.00
| FYTJ30KF SKF 15/16inch Bore Y-bearing - Cast Housing with an Oval Flange & Adapter Sleeve 2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

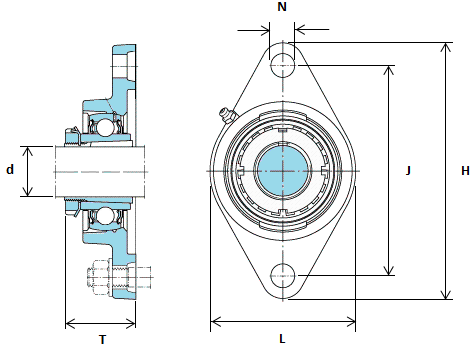

| Attribute | Value |
|---|---|
| Limiting Speed | 6300r/min |
| Overall Height with Bearing (T) | 1.57inch (40mm) |
| Bolt Hole Dia (N) | 0.63inch (16mm) |
| Width (L) | 3.15inch (80mm) |
| Bolt Hole Centres (J) | 4.61inch (117mm) |
| Bore Size (d) | 15/16inch (23.813mm) |
| Length (H) | 5.83 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
