FYTB30WF SKF 30mm 2 Bolt Flange Bearing with Eccentric Locking Collar
Weight (Kg) :0.00
| FYTB30WF SKF 30mm Bore Y-bearing - Cast Housing with an Oval Flange & Eccentric Locking Collar 2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

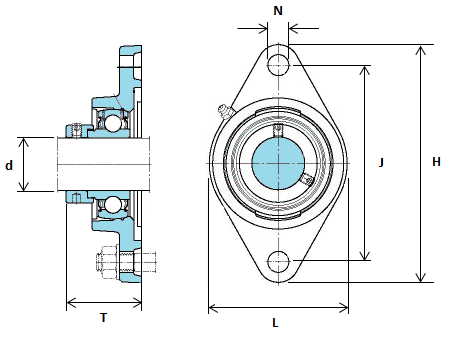

| Attribute | Value |
|---|---|
| Limiting Speed | 6300r/min |
| Overall Height with Bearing (T) | 50.1 |
| Width (L) | 83 |
| Bolt Hole Dia (N) | 11.5 |
| Bolt Hole Centres (J) | 116.5 |
| Bore Size (d) | 30 |
| Length (H) | 141.5 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
