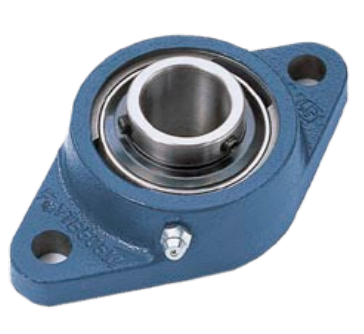

FYT7/8FM SKF 7/8inch 2 Bolt Flange Bearing with Eccentric Locking Collar
Weight (Kg) :0.00
| FYT7/8FM SKF 7/8inch Bore Y-bearing - Cast Housing with an Oval Flange & Eccentric Locking Collar 2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

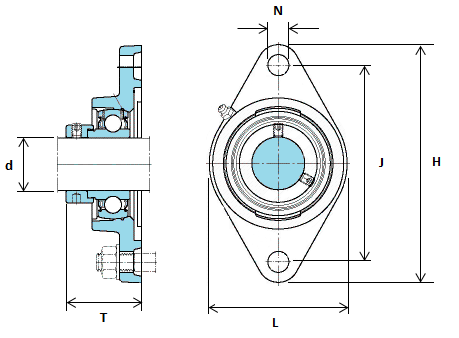

| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 1.67inch (42.5mm) |
| Bolt Hole Dia (N) | 0.50inch (12.7mm) |
| Width (L) | 2.76inch (70mm) |
| Bolt Hole Centres (J) | 3.89inch (98.8mm) |
| Bore Size (d) | 7/8inch (22.225mm) |
| Limiting Speed | 7000r/min |
| Length (H) | 4.88inch (124mm) |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
