FYT1/2FM SKF 1/2inch 2 Bolt Flange Bearing with Eccentric Locking Collar

Weight (Kg) :0.00

FYT1/2FM SKF 1/2inch Bore Y-bearing - Cast Housing with an Oval Flange & Eccentric Locking Collar

2 bolt hole flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions:

  • high levels of contamination
  • high speeds
  • high temperatures
  • relatively heavy loads

    • FYT1/2FM SKF 1/2inch 2 Bolt Flange Bearing with Eccentric Locking Collar

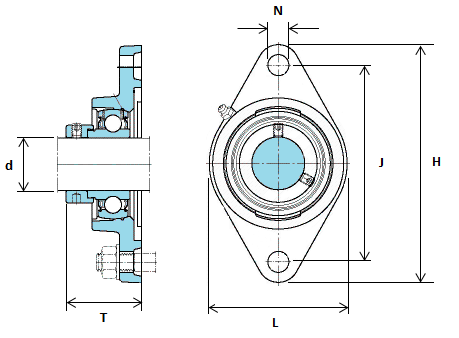

    Attribute Value
    Overall Height with Bearing (T) 1.45inch (36.8mm)
    Bolt Hole Dia (N) 0.44inch (11.1mm)
    Width (L) 2.13inch (54mm)
    Bolt Hole Centres (J) 3.00inch (76.2mm)
    Bore Size (d) 1/2inch (12.7mm)
    Limiting Speed 9500r/min
    Length (H) 3.88inch (98.5mm)
    Qty

    £34.22
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
