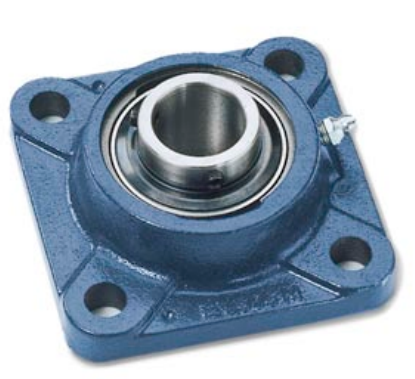

FYJ30KF SKF 15/16inch Bore Square Flange with Adapter Sleeve
Weight (Kg) :0.00
| SKF FYJ30KF 15/16inch Bore Y-bearing - Cast Housing with a Square Flange & Adapter Sleeve Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

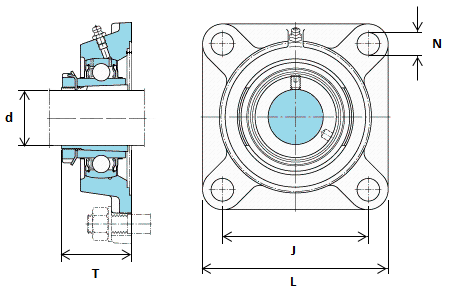

| Attribute | Value |
|---|---|
| Bolt Hole Dia (N) | 0.47inch (12mm) |
| Length/Width (L) | 4.25inch (108mm) |
| Bolt Hole Centres (J) | 3.27inch (83mm) |
| Overall Height with Bearing (T) | 1.57inch (40mm) |
| Bore Size (d) | 15/16inch (23.813mm) |
| Limiting Speed | 6300r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
