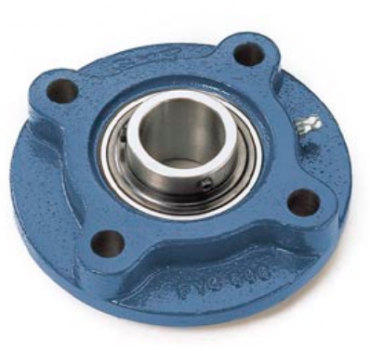

FYC20TF SKF 20mm 4 Bolt Round Flange Bearing with Grub Screws
Weight (Kg) :0.00
| FYC20TF SKF 20mm Bore Y-bearing - Cast Housing with Round Flange & Grub Screws 4 bolt hole round flanged bearings units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

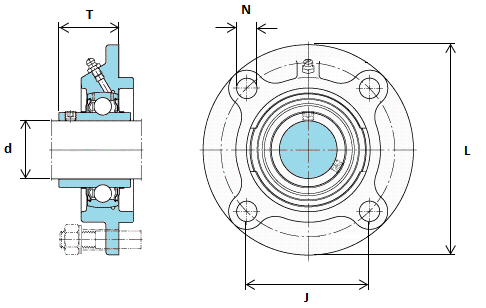

| Attribute | Value |
|---|---|
| Limiting Speed | 8500r/min |
| Overall Height with Bearing (T) | 28.3 |
| Bolt Hole Dia (N) | 12 |
| Outside Dia (L) | 100 |
| Bolt Hole Centres (J) | 55.2 |
| Bore Size (d) | 20 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
