FY35TR SKF 35mm Bore Square Flange with Grub Screws
Weight (Kg) :0.00
| SKF FY35TR 35mm Bore Y-bearing - Cast Housing with a Square Flange & Grub Screws Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

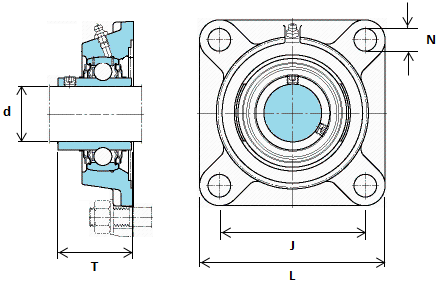

| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 46.4 |
| Bolt Hole Dia (N) | 14 |
| Length/Width (L) | 118 |
| Bolt Hole Centres (J) | 92 |
| Bore Size (d) | 35 |
| Limiting Speed | 3200r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
