FY25FM SKF 25mm Bore Square Flange with Eccentric Locking Collar
Weight (Kg) :0.00
| SKF FY25FM 25mm Bore Y-bearing - Cast Housing with a Square Flange & Eccentric Locking Collar Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

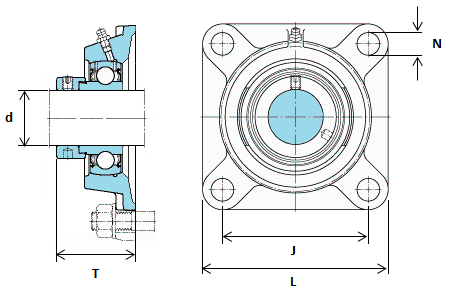

| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 42.5 |
| Bolt Hole Dia (N) | 11.5 |
| Length/Width (L) | 95 |
| Bolt Hole Centres (J) | 70 |
| Limiting Speed | 7000r/min |
| Bore Size (d) | 25 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
