FY1.15/16TF SKF 1.15/16inch Bore Square Flange with Grub Screws
Weight (Kg) :0.00
| SKF FY1.15/16TF 1.15/16inch Bore Y-bearing - Cast Housing with a Square Flange & Grub Screws Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

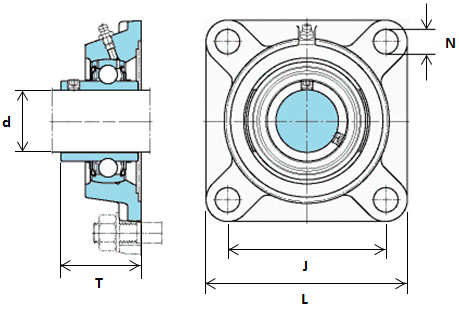

| Attribute | Value |
|---|---|
| Length/Width (L) | 5.63inch (143mm) |
| Overall Height with Bearing (T) | 2.39inch (60.6mm) |
| Bolt Hole Centres (J) | 4.37inch (111mm) |
| Limiting Speed | 4000r/min |
| Bore Size (d) | 1.15/16inch (49.213mm) |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
