FY1.1/4WF SKF 1.1/4inch Bore Square Flange with Eccentric Locking Collar
Weight (Kg) :0.00
| SKF FY1.1/4WF 1.1/4inch Bore Y-bearing - Cast Housing with a Square Flange & Eccentric Locking Collar Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |

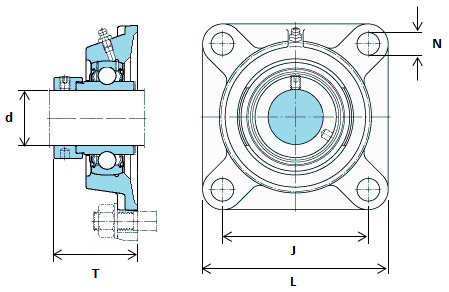

| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 2.10inch (53.3mm) |
| Bolt Hole Centres (J) | 3.62inch (92mm) |
| Length/Width (L) | 4.65inch (118mm) |
| Bore Size (d) | 1.1/4inch (31.75mm) |
| Limiting Speed | 5300r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
