FPL-04 1/4inch Left Hand Rod End Bearing

Weight (Kg) :0.00

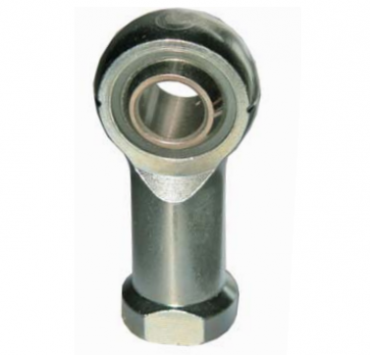

FPL-04 1/4inch Left Hand Rod End Bearing

FP - Series is our 3-piece standard range of self lubricating general purpose female rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Low carbon steel 230M07PB, Zinc plated white & colour passive
  • Race: GR-Nylon, LV-3H.
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plate.

    Specification
  • ELV & R0HS Compliant.

    • FPL-04 1/4inch Left Hand Rod End Bearing

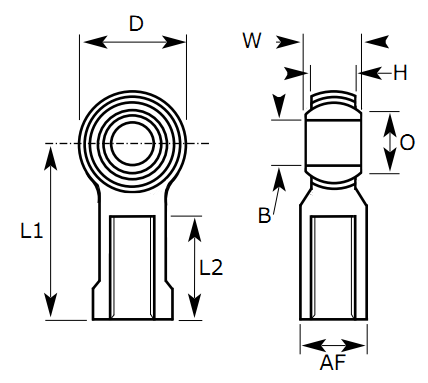

    Attribute Value
    Ball Width (W) 0.375
    Housing Depth (H) 0.281
    Thread Direction Left Hand
    Length of Thread (L2) 0.750
    Shaft Centre Height (L1) 1.312
    Thread 1/4-28 UNF
    Bore Size 1/4
    Housing Dia (D) 0.750
    AF 0.375
    Qty

    £5.93
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
