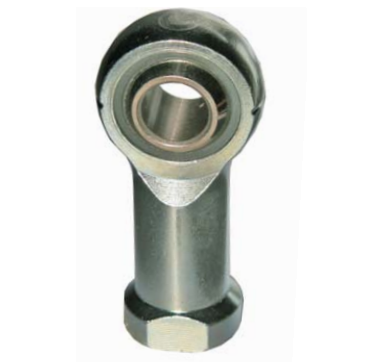

FPL-03SS 3/16inch Left Hand Rod End Bearing - Stainless Steel

Weight (Kg) :0.00

FPL-03SS 3/16inch Left Hand Rod End Bearing - Stainless Steel

FP - Series is our 3-piece standard range of self lubricating general purpose female rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Low carbon steel 230M07PB, Zinc plated white & colour passive
  • Race: GR-Nylon, LV-3H.
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plate.

    Specification
  • ELV & R0HS Compliant.

    • FPL-03SS 3/16inch Left Hand Rod End Bearing - Stainless Steel

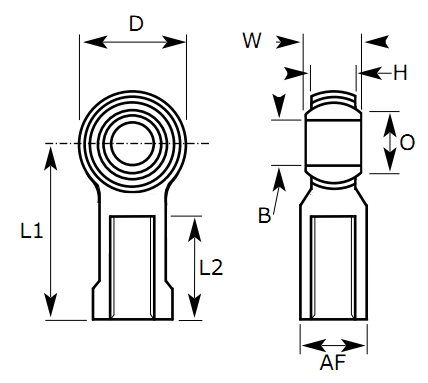

    Attribute Value
    Ball Width (W) 0.312
    Housing Depth (H) 0.250
    Thread Direction Left Hand
    Length of Thread (L2) 0.562
    Shaft Centre Height (L1) 1.062
    Thread 10-32 UNF
    Bore Size 3/16
    Housing Dia (D) 0.625
    AF 0.312
    Qty

    £11.87
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
