FP-M18C 18mm Right Hand Rod End Bearing (Fine Thread)

Weight (Kg) :0.00

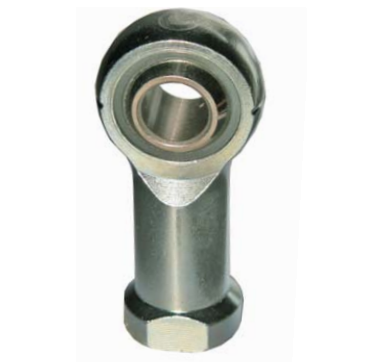

FP-M18C 18mm Right Hand Rod End Bearing (Fine Thread)

Where possible rod ends should be mounted vertically (i.e. the housing member to the top) as this will maximise efficiency and life of the product.

  • Housing: Low carbon steel 230M07BP. Zinc plate and colour passive
  • Race: GR-Nylon
  • Ball: Low carbon steel 230M07BP. Case hardened electroless nickle plate

    • FP-M18C 18mm Right Hand Rod End Bearing (Fine Thread)

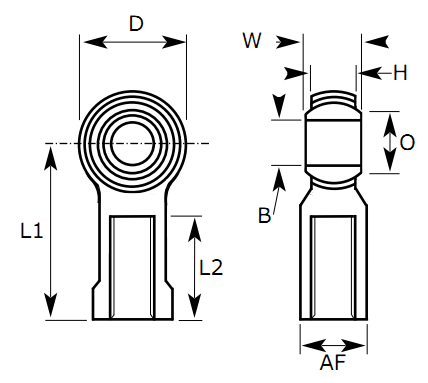

    Attribute Value
    Housing Depth (H) 16.50
    Thread Direction Right Hand
    Length of Thread (L2) 31
    Shaft Centre Height (L1) 71
    Thread M18x1.50
    Bore Size 18
    Ball Width (W) 23
    Housing Dia (D) 46
    AF 27.00
    Qty

    £25.40
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
