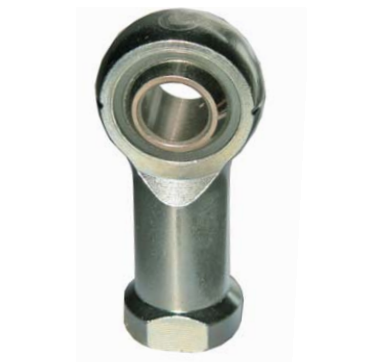

FP-M10CSS 10mm Right Hand Rod End Bearing - Stainless Steel (Fine Thread)
Weight (Kg) :0.00
| FP-M10CSS 10mm Right Hand Rod End Bearing - Stainless Steel (Fine Thread) FP - Series is our 3-piece standard range of self lubricating general purpose female rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range. Materials Specification |
| Attribute | Value |
|---|---|
| Housing Depth (H) | 10.50 |
| Thread Direction | Right Hand |
| Length of Thread (L2) | 21 |
| Shaft Centre Height (L1) | 43 |
| Thread | M10x1.25 |
| Bore Size | 10 |
| Ball Width (W) | 14 |
| Housing Dia (D) | 26 |
| AF | 17.00 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
