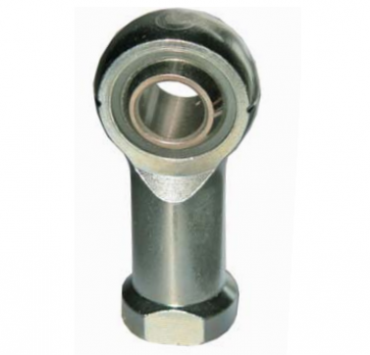

FP-M06 6mm Right Hand Rod End Bearing
Weight (Kg) :0.00
| FP-M06 6mm Right Hand Rod End Bearing Where possible rod ends should be mounted vertically (i.e. the housing member to the top) as this will maximise efficiency and life of the product. |

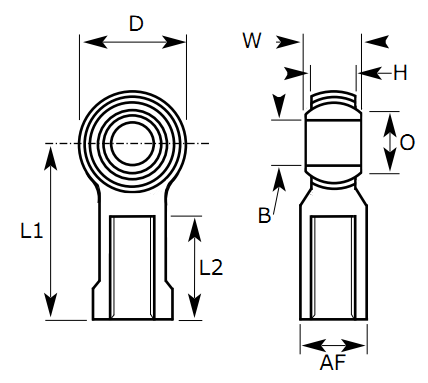

| Attribute | Value |
|---|---|
| Housing Dia (D) | 9 |
| Thread Direction | Right Hand |
| Length of Thread (L2) | 14 |
| Shaft Centre Height (L1) | 30 |
| Thread | M6x1.00 |
| Bore Size | 6 |
| Ball Width (W) | 6.75 |
| Housing Depth (H) | 18 |
| AF | 11.00 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
