FP-08 1/2inch Right Hand Rod End Bearing

Weight (Kg) :0.00

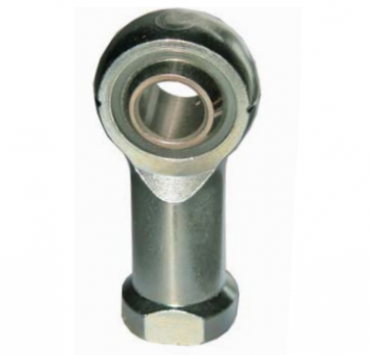

FP-08 1/2inch Right Hand Rod End Bearing

FP - Series is our 3-piece standard range of self lubricating general purpose female rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Low carbon steel 230M07PB, Zinc plated white & colour passive
  • Race: GR-Nylon, LV-3H.
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plate.

    Specification
  • ELV & R0HS Compliant.

    • FP-08 1/2inch Right Hand Rod End Bearing

    Attribute Value
    Housing Depth (H) 0.500
    Ball Width (W) 0.652
    Housing Dia (D) 1.312
    Thread Direction Right Hand
    Length of Thread (L2) 1.187
    Shaft Centre Height (L1) 2.125
    Thread 1/2-20 UNF
    Bore Size 1/2
    AF 0.750
    Qty

    £11.58
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
