FP-05SS 5/16inch Right Hand Rod End Bearing - Stainless Steel

Weight (Kg) :0.00

FP-05SS 5/16inch Right Hand Rod End Bearing - Stainless Steel

FP - Series is our 3-piece standard range of self lubricating general purpose female rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Low carbon steel 230M07PB, Zinc plated white & colour passive
  • Race: GR-Nylon, LV-3H.
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plate.

    Specification
  • ELV & R0HS Compliant.

    • FP-05SS 5/16inch Right Hand Rod End Bearing - Stainless Steel

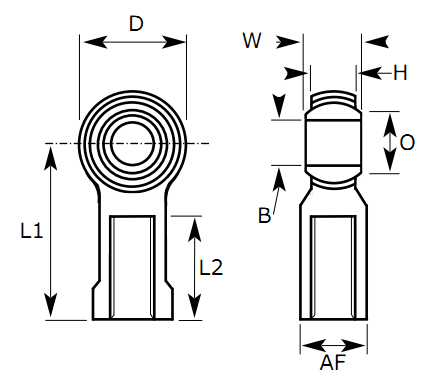

    Attribute Value
    Ball Width (W) 0.437
    Housing Depth (H) 0.344
    Thread Direction Right Hand
    Length of Thread (L2) 0.750
    Shaft Centre Height (L1) 1.375
    Thread 5/16-24 UNF
    Bore Size 5/16
    Housing Dia (D) 0.875
    AF 0.437
    Qty

    £19.12
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
