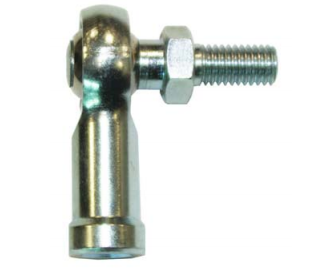

FB-M06S 6mm Studded Right Hand Rod End Bearing

Weight (Kg) :0.00

FB-M06S 6mm Studded Right Hand Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plate & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB. Case hardened electroless nickle plate
  • Stud: Low carbon steel 230M07PB, zinc plate & colour passive

    • FB-M06S 6mm Studded Right Hand Rod End Bearing

    Attribute Value
    A+B 24
    B 12
    Thread Length (C) 10
    Stud Length (A) 12
    Thread Direction Right Hand
    Thread M6x1.00
    Bore Size 6
    K 10
    AF 11
    Qty

    £9.64
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
