FB-12 3/4inch Right Hand Rod End Bearing

Weight (Kg) :0.00

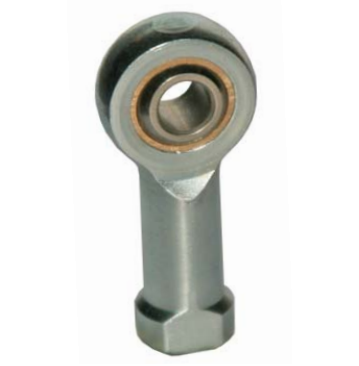

FB-12 3/4inch Right Hand Rod End Bearing

FB - Series is our 4-piece standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

(An oil impregnated sintered bronze race is also available for some sizes or if quantity justifies production, suitable for high precision motion transfer applications and extended wear life. Please enquire for availability as it will not be sold as standard.)

Materials
  • Housing: Steel 230M07PB, Zinc plated white & blue passivate (silver/clear).
  • Race: Bronze SAE66O.
  • Ball: Bearing Steel 100Cr6, case hardened & electro-less Nickel plated.

    Specification
  • ELV & RoHS Compliant.

    • FB-12 3/4inch Right Hand Rod End Bearing

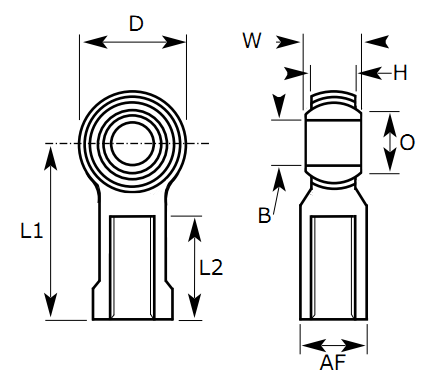

    Attribute Value
    Housing Depth (H) 0.687
    Ball Width (W) 0.875
    Thread Direction Right Hand
    Length of Thread (L2) 1.562
    Shaft Centre Height (L1) 2.875
    Thread 3/4-16 UNF
    Bore Size 3/4
    Housing Dia (D) 1.562
    AF 1.000
    Qty

    £39.90
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
