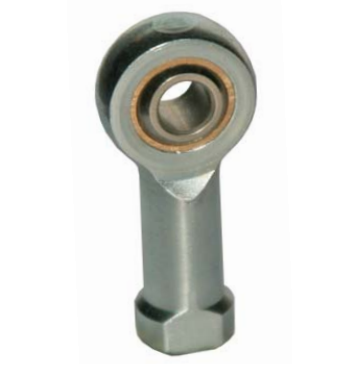

FB-05 5/16inch Right Hand Rod End Bearing
Weight (Kg) :0.00
| FB-05 5/16inch Right Hand Rod End Bearing FB - Series is our 4-piece standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance. (An oil impregnated sintered bronze race is also available for some sizes or if quantity justifies production, suitable for high precision motion transfer applications and extended wear life. Please enquire for availability as it will not be sold as standard.) Materials Specification |
| Attribute | Value |
|---|---|
| Housing Depth (H) | 0.344 |
| Ball Width (W) | 0.437 |
| Thread Direction | Right Hand |
| Length of Thread (L2) | 0.750 |
| Shaft Centre Height (L1) | 1.375 |
| Thread | 5/16-24 UNF |
| Bore Size | 5/16 |
| Housing Dia (D) | 0.875 |
| AF | 0.437 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
