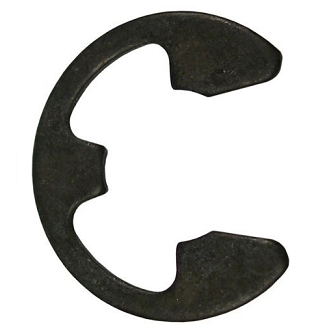

D1500/0150 15mm E Clip (Pack of 20)
Weight (Kg) :0.00
| D1500/0150 15mm E Clip (Pack of 20) Standard material used is carbon spring steel and the standard finish is phosphate & oil. |

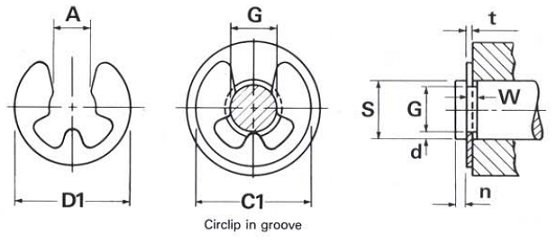

| Attribute | Value |
|---|---|
| A | 12.61 |
| Pack Size | 20 |
| Outside Dia (D1) | 28.6 |
| Thickness (t) | 1.5 |
| Shaft Size (S) | 20 |
| Groove Dia (G) | 15 |
| Inside Dia (C1) | 29.4 |
| W | 1.55 |
| n | 3 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
