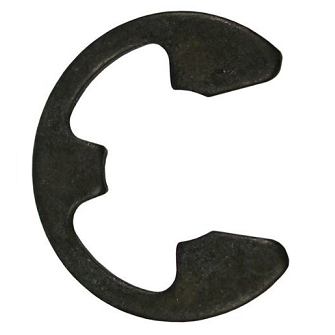

D1500/0100 10mm E Clip (Pack of 100)
Weight (Kg) :0.00
| D1500/0100 10mm E Clip (Pack of 100) Standard material used is carbon spring steel and the standard finish is phosphate & oil. |

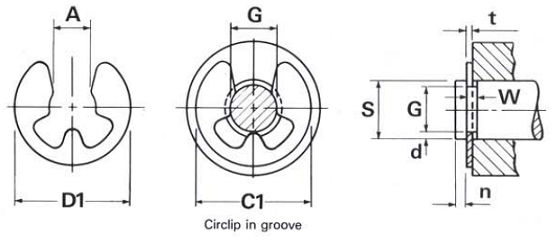

| Attribute | Value |
|---|---|
| Pack Size | 100 |
| Outside Dia (D1) | 19.65 |
| Thickness (t) | 1.2 |
| Shaft Size (S) | 13 |
| Groove Dia (G) | 10 |
| Inside Dia (C1) | 20.4 |
| A | 8.32 |
| W | 1.25 |
| n | 2 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
