D1400/0520 52mm External Circlip (Pack of 10)
Weight (Kg) :0.00
| D1400/0520 52mm External Circlip (Pack of 10) 52mm external circlips for the retension of bearings, gears, pulleys etc. It is suitable for the majority of normal engineering applications, providing a rigid, yet tough, load bearing shoulder on a shaft. Standard material: The standard material for most circlips and retaining clips is carbon spring steel (CS). All circlips made from this material are austempered so as to give optimum ductility at the high hardness values necessary for correct function. |

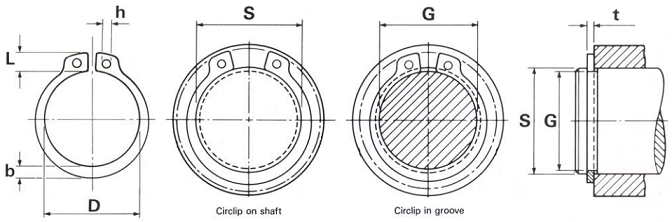

| Attribute | Value |
|---|---|
| Groove Dia (G) | 49.0 |
| Internal Dia (D) | 47.8 |
| Pack Size | 10 |
| Thickness (t) | 2.00 |
| Shaft Size (S) | 52 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
