BX74 Cogged V Belt

Weight (Kg) :0.00

BX74 Cogged V Belt

The MEDWAY classical cogged raw edge V-belt is a temperature and oil resistant universal drive belt that has antistatic properties and due to its design can be used with small pulley diameters. It is suitable for industrial machinery, agricultural equipment and automotive applications.

Construction and Features
  • The tensile member consists of a specially treated high strength polyester cord to transmit tensile forces and withstand shock loads.
  • The belt compound converts tensile forces on the sidewalls into longitudinal forces in the tensile member.
  • The moulded cogged design provides high flexibility as well as lower operating temperatures.

    Standards
  • Conforms to 1S04184, D1N2215 and BS3790, they meet 1S01813 for static conductivity and have an operating temperature range of -30°C - +60°C.

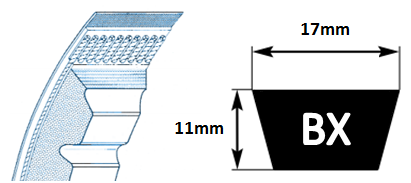

    Dimensions
  • 17mm top width x 11mm deep

    • BX74 Cogged V Belt

    Attribute Value
    External Length 1945
    Pitch Length 1923
    Internal Length 1880
    Qty

    £13.64
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
