9840 Chrome Ball Transfer Unit
Weight (Kg) :0.00

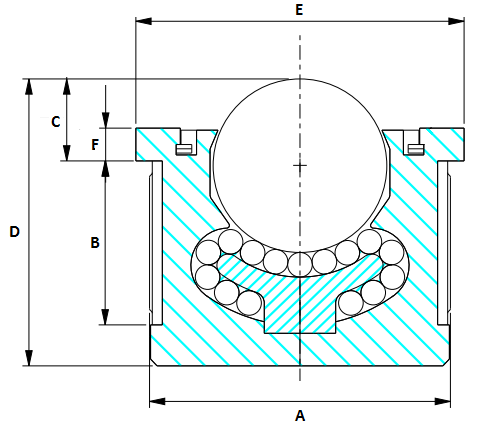

| 9840 Chrome Ball Transfer Unit High capacity, tolerance ring ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 65mm B= 20mm C= 25mm D= 60mm E= 70mm F= 12.3mm |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 60 |
| Overall Body Dia (mm) | 65 |
| Ball Dia (mm) | 38.1 |
| Load (kg) | 1100 |
| Flange Dia (mm) | 70 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
