9830 Chrome Ball Transfer Unit
Weight (Kg) :0.00

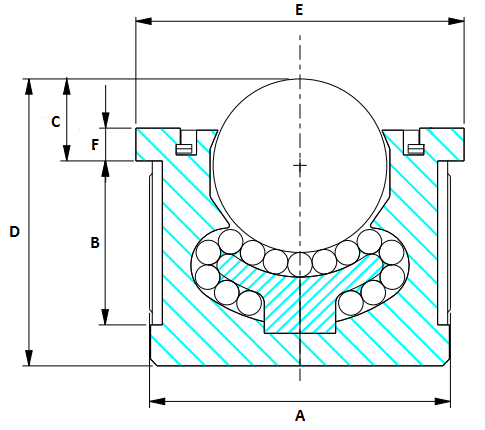

| 9830 Chrome Ball Transfer Unit High capacity, tolerance ring ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 50mm B= 16mm C= 15mm D= 44mm E= 55mm F= 8.6mm |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 44 |
| Overall Body Dia (mm) | 50 |
| Ball Dia (mm) | 25.4 |
| Load (kg) | 375 |
| Flange Dia (mm) | 55 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
