9820 Chrome Ball Transfer Unit
Weight (Kg) :0.00

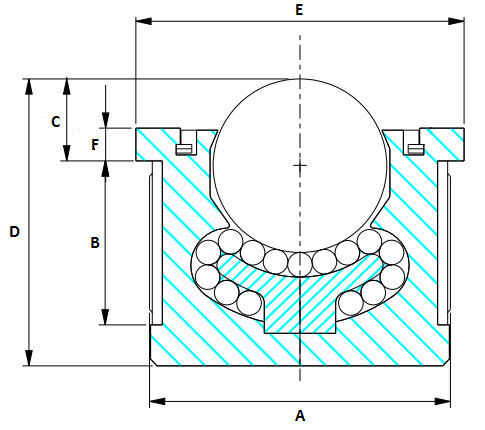

| 9820 Chrome Ball Transfer Unit High capacity, tolerance ring ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 45mm B= 15mm C= 14mm D= 40mm E= 49mm F= 6.9mm |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 40 |
| Overall Body Dia (mm) | 45 |
| Ball Dia (mm) | 25.4 |
| Load (kg) | 225 |
| Flange Dia (mm) | 49 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
