9810 Chrome Ball Transfer Unit
Weight (Kg) :0.00

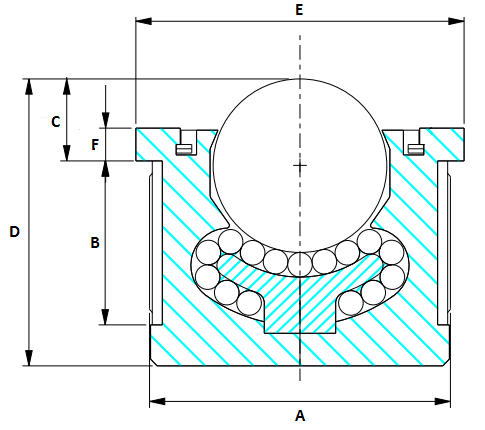

| 9810 Chrome Ball Transfer Unit High capacity, tolerance ring ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 22mm B= 12mm C= 6mm D= 21mm E= 24mm F= 2.4mm |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 21 |
| Overall Body Dia (mm) | 22 |
| Ball Dia (mm) | 12.7 |
| Load (kg) | 46 |
| Flange Dia (mm) | 24 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
