9810-A Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00

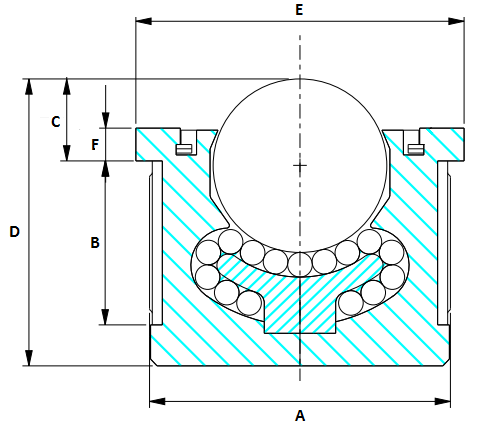

| 9810-A Carbon Steel Housing with Stainless Steel Ball High capacity, tolerance ring ball transfer unit. Stainless steel balls (AISI 440) but other materials as standard. As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 22mm B= 12mm C= 6mm D= 21mm E= 24mm F= 2.4mm |
| Attribute | Value |
|---|---|
| Flange Dia (mm) | 24 |
| Overall Height (mm) | 21 |
| Overall Body Dia (mm) | 22 |
| Ball Dia (mm) | 12.7 |
| Load (kg) | 46 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
