9640 Chrome Ball Transfer Unit
Weight (Kg) :0.00

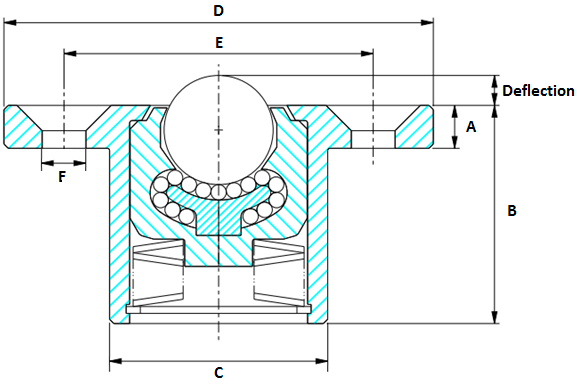

| 9640 Chrome Ball Transfer Unit High capacity, flange socket spring loaded ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): Deflection= 10 A= 10mm B= 114.3mm C= 69.9mm D= 115mm E= 92mm F (countersunk)= 3x10.1mm |
| Attribute | Value |
|---|---|
| Flange Dia (mm) | 115 |
| Overall Body Dia (mm) | 69.9 |
| Ball Dia (mm) | 38.1 |
| Bolt Hole Dia (mm) | 92 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
