9630 Chrome Ball Transfer Unit
Weight (Kg) :0.00

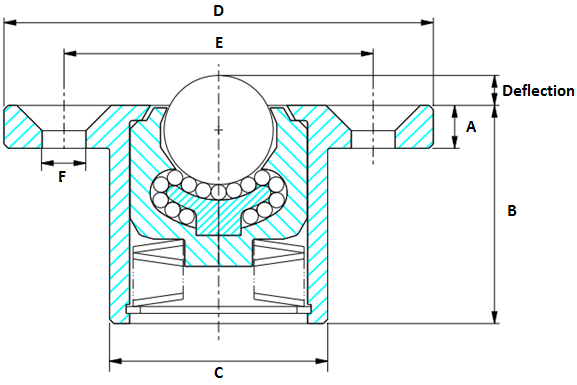

| 9630 Chrome Ball Transfer Unit High capacity, flange socket spring loaded ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): Deflection= 2.4 A= 6mm B= 60.3mm C= 63.5mm D= 100mm E= 80mm F (countersunk)= 3x8.1mm |
| Attribute | Value |
|---|---|
| Flange Dia (mm) | 100 |
| Overall Body Dia (mm) | 63.5 |
| Ball Dia (mm) | 25.4 |
| Bolt Hole Dia (mm) | 80 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
