9620 Chrome Ball Transfer Unit
Weight (Kg) :0.00

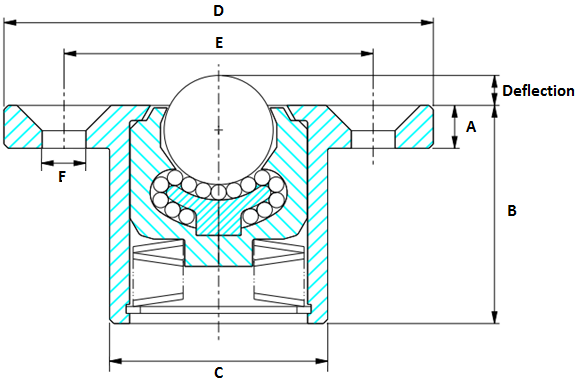

| 9620 Chrome Ball Transfer Unit High capacity, flange socket spring loaded ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): Deflection= 4.8 A= 6mm B= 55.5mm C= 50.8mm D= 80mm E= 65mm F (countersunk)= 3x6.1mm |
| Attribute | Value |
|---|---|
| Flange Dia (mm) | 80 |
| Overall Body Dia (mm) | 50.8 |
| Ball Dia (mm) | 25.4 |
| Bolt Hole Dia (mm) | 65 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
