9530 Chrome Ball Transfer Unit
Weight (Kg) :0.00

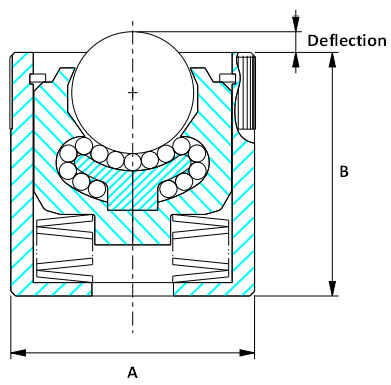

| 9530 Chrome Ball Transfer Unit High capacity, house spring loaded ball transfer unit As seen on diagram below: Deflection = 2.4 Load at max deflection= 367kg A= 63.5mm (8mm wide fine knurl on outside dia) B= 60.3mm |
| Attribute | Value |
|---|---|
| Overall Dia (mm) | 63.5 |
| Ball Dia (mm) | 25.4 |
| Supports Load (kg) | 227 |
| Total Height (mm) | 60.3 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
