9520-A Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00

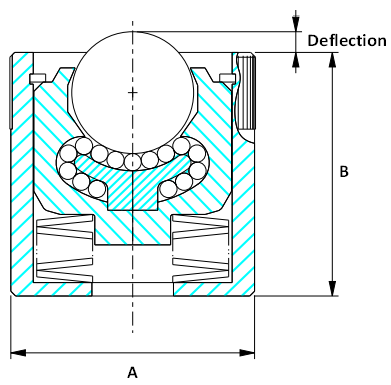

| 9520-A Carbon Steel Housing with Stainless Steel Ball High capacity, house spring loaded ball transfer unit. Stainless steel ball (AISI 440) but other materials as standard. As seen on diagram below: Deflection = 4.8 Load at max deflection= 188kg A= 50.8mm (8mm wide fine knurl on outside dia) B= 55.5mm |
| Attribute | Value |
|---|---|
| Overall Dia (mm) | 50.8 |
| Ball Dia (mm) | 25.4 |
| Supports Load (kg) | 91 |
| Total Height (mm) | 55.5 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
