9500 Chrome Ball Transfer Unit
Weight (Kg) :0.00

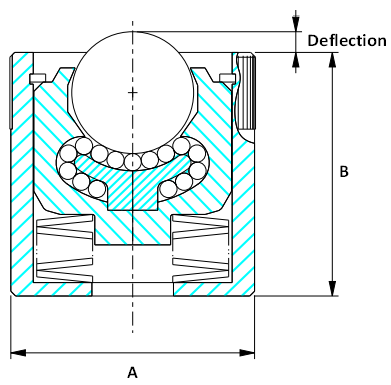

| 9500 Chrome Ball Transfer Unit High capacity, house spring loaded ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): Deflection = 2.2 Load at max deflection= 38kg A= 25.4mm (8mm wide fine knurl on outside dia) B= 25.4mm |
| Attribute | Value |
|---|---|
| Total Height (mm) | 25.4 |
| Overall Dia (mm) | 25.4 |
| Ball Dia (mm) | 12.7 |
| Supports Load (kg) | 23 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
