9450-A Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00

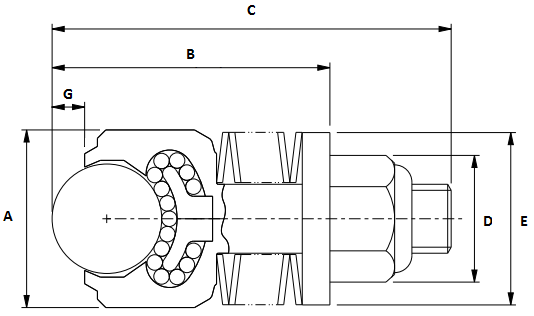

| 9450-A Stainless Steel Ball Transfer Unit High capacity, external spring loaded ball transfer unit. Stainless steel balls (AISI 440) but other materials as standard. As seen on diagram below: A = 101.6mm B= 139.1mm C= 160.3mm D= 50.8mm E= 101.6mm Fixing holes (PCD)= 4xM8 (76.2) G= 14.3mm |
| Attribute | Value |
|---|---|
| Total Length (mm) | 160.3 |
| Overall Dia (mm) | 101.6 |
| Pre-load (kg) | 764 |
| Ball Dia (mm) | 50.8 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
