9440 Chrome Ball Transfer Unit
Weight (Kg) :0.00

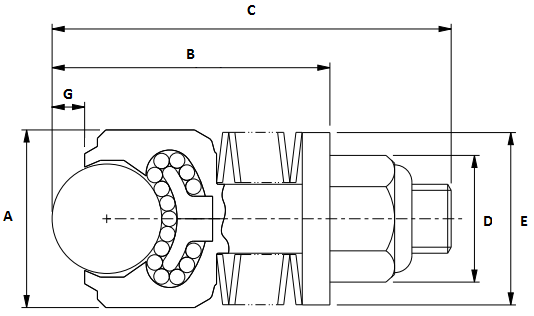

| 9440 Chrome Ball Transfer Unit High capacity, external spring loaded ball transfer unit As seen on diagram below: A = 60.3mm B= 115mm C= 162.1mm D= 35mm E= 59.4mm Fixing holes (PCD)= 3xM6 (50.8) G= 12.7mm |
| Attribute | Value |
|---|---|
| Total Length (mm) | 162.1 |
| Overall Dia (mm) | 60.3 |
| Pre-load (kg) | 227 |
| Ball Dia (mm) | 38.1 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
