9423-A Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00

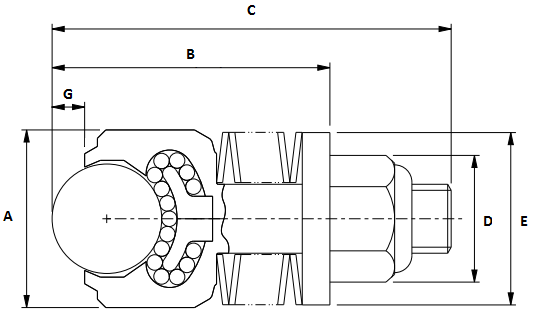

| 9423-A Stainless Steel Ball Transfer Unit High capacity, external spring loaded ball transfer unit. Stainless steel balls (AISI 440) but other materials as standard. As seen on diagram below: A = 44.5mm B= 61.8mm C= 77mm D= 19.2mm E= 31.8mm Fixing holes (PCD)= 3xM5 (24.8) G= 5.6mm |
| Attribute | Value |
|---|---|
| Total Length (mm) | 77 |
| Overall Dia (mm) | 44.5 |
| Pre-load (kg) | 68 |
| Ball Dia (mm) | 25.4 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
