9401-A Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00

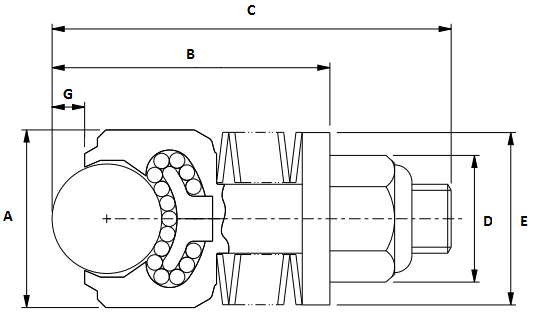

| 9401-A Stainless Steel Ball Transfer Unit High capacity, external spring loaded ball transfer unit. Stainless steel balls (AISI 440) but other materials as standard. As seen on diagram under photographic picture to the right (click to enlarge for clarity): A = 20.6mm B= 32.2mm C= 46.2mm D= 14.7mm E= 20mm Fixing holes (PCD)= N/A G= 3.8mm |
| Attribute | Value |
|---|---|
| Total Length (mm) | 46.2 |
| Overall Dia (mm) | 20.6 |
| Pre-load (kg) | 7 |
| Ball Dia (mm) | 12.7 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
