9341 Chrome Ball Transfer Unit
Weight (Kg) :0.00

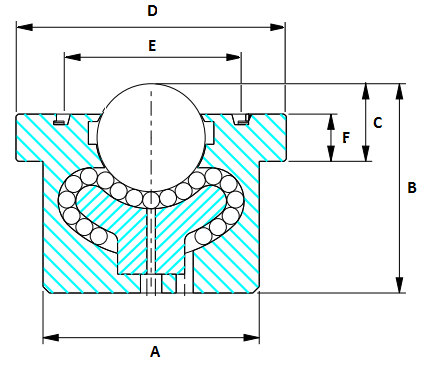

| 9341 Chrome Ball Tranfer Unit High capacity range, flange socket ball transfer unit. Flange size: 76.2mm Bolt hole size: 57.9mm A: 60mm B: 60mm C: 25.4mm D: 76.2mm E: 57.9mm F: 12.7mm G: 4 x 8.1 |
| Attribute | Value |
|---|---|
| Overall Body Dia (mm) | 60 |
| Ball Dia (mm) | 38.1 |
| Load (kg) | 1100 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
