9330 Chrome Ball Transfer Unit
Weight (Kg) :0.00

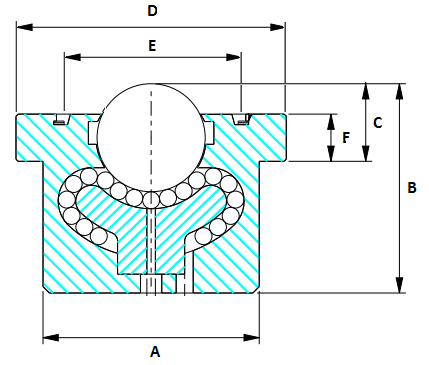

| 9330 Chrome Ball Transfer Unit High capacity range, flange socket ball transfer unit. Flange size: 76.2mm Bolt hole size: 57.9mm A: 50mm B: 44.5mm C: 12.7mm D: 76.2mm E: 57.9mm F: 6.4mm G: 4 x 8.1 |
| Attribute | Value |
|---|---|
| Overall Body Dia (mm) | 50 |
| Ball Dia (mm) | 25.4 |
| Load (kg) | 375 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
