9321 Chrome Ball Transfer Unit
Weight (Kg) :0.00

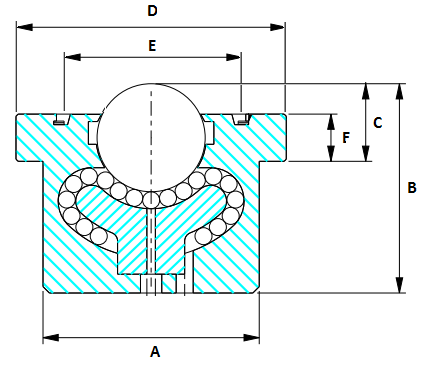

| 9321 Chrome Ball Transfer Unit High capacity range, flange socket ball transfer unit. Flange size: 57.2mm Bolt hole size: 44.5mm A: 44.5mm B: 41.3mm C: 11.9mm D: 57.2mm E: 44.5mm F: 4.8mm G: 4 x 6.1 |
| Attribute | Value |
|---|---|
| Overall Body Dia (mm) | 44.5 |
| Ball Dia (mm) | 25.4 |
| Load (kg) | 225 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
