9300 Chrome Ball Transfer Unit
Weight (Kg) :0.00

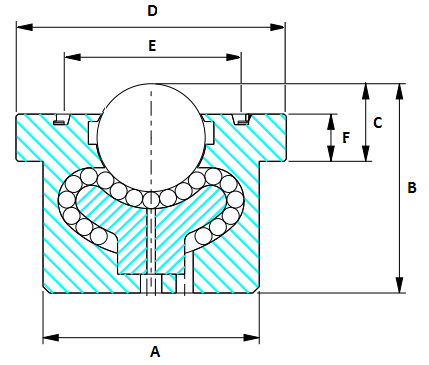

| 9300 Chrome Ball Transfer Unit High capacity range, flange socket ball transfer unit with round flange. Flange size: 45.5mm Bolt hole size: 34.9mm A: 23.8mm B: 22.2mm C: 11.2mm D: 44.5mm E: 34.9mm F: 3.2mm G: 2 x 3.6mm |
| Attribute | Value |
|---|---|
| Overall Body Dia (mm) | 23.8 |
| Ball Dia (mm) | 12.7 |
| Load (kg) | 46 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
