9230-SS Steel Ball Transfer Unit (Stainless Ball)
Weight (Kg) :0.00
| 9230-SS Steel Ball Transfer Unit (Stainless Ball) High capacity range, flange mounted ball transfer unit. All parts are stainless steel - outer housing AISI 304 and internal parts & ball AISI 440. |
| Attribute | Value |
|---|---|

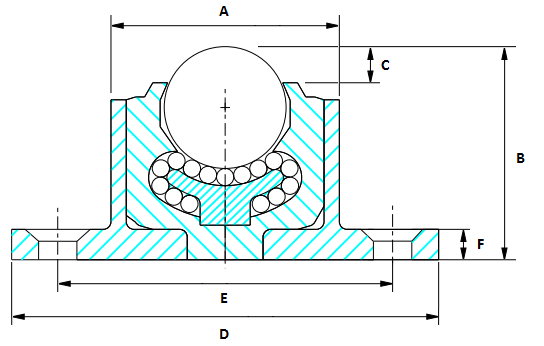

| B - See Diagram (mm) | 44.5 |
| Bolt Hole Size - E (mm) | 57.9 |
| Flange Size - D (mm) | 76.2 |
| Overall Body Dia - A (mm) | 50 |
| Ball Dia (mm) | 25.4 |
| Load (kg) | 375 |
| C - See Diagram (mm) | 6.4 |
| F - See Diagram (mm) | 6.4 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
