9200 Chrome Ball Transfer Unit
Weight (Kg) :0.00
| 9200 Chrome Ball Transfer Unit High capacity range, flange mounted ball transfer unit. |

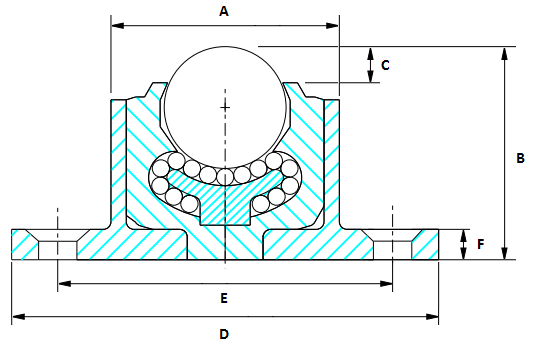

| Attribute | Value |
|---|---|
| B - See Diagram (mm) | 22.2 |
| F - See Diagram (mm) | 3.2 |
| C - See Diagram (mm) | 3.8 |
| Bolt Hole Size - E (mm) | 34.9 |
| Flange Size - D (mm) | 44.5 |
| Overall Body Dia - A (mm) | 23.8 |
| Ball Dia (mm) | 12.7 |
| Load (kg) | 46 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
