9150 Chrome Ball Transfer Unit
Weight (Kg) :0.00
| 9150 Chrome Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Standard chrome ball Thread height: 54mm |
| Attribute | Value |
|---|---|
| Thread Height - D (mm) | 54 |

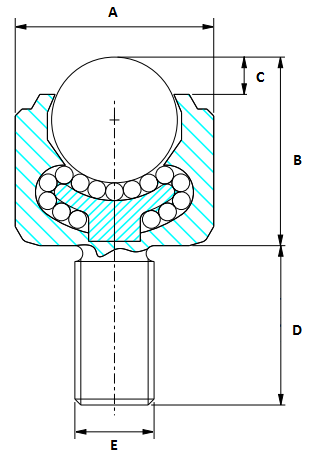

| C - See Diagram (mm) | 14.3 |
| Body Height - B (mm) | 105 |
| Overall Dia - A (mm) | 100 |
| Ball Diameter (mm) | 50.8 |
| Load (kg) | 2200 |
| E - See Diagram (mm) | M24 x 3.0 |
| Part Number | 9150 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
