9135 Chrome Ball Transfer Unit
Weight (Kg) :0.00
| 9135 Chrome Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Standard chrome ball Thread height: 60mm |
| Attribute | Value |
|---|---|
| Overall Dia - A (mm) | 50.8 |
| Body Height - B (mm) | 42 |

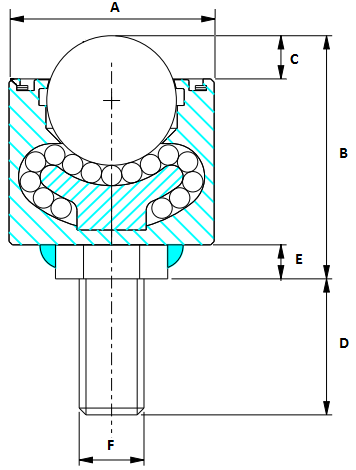

| C - See Diagram (mm) | 6.4 |
| Ball Diameter (mm) | 25.4 |
| Load (kg) | 375 |
| Part Number | 9135 |
| Thread Height - D (mm) | 60 |
| E - See Diagram (mm) | 10 |
| Thread - F (mm) | 1inch UNF |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
