9130 Chrome Ball Transfer Unit
Weight (Kg) :0.00
| 9130 Chrome Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Standard Chrome Ball Thread height: 25mm |
| Attribute | Value |
|---|---|
| Body Height - B (mm) | 51.3 |

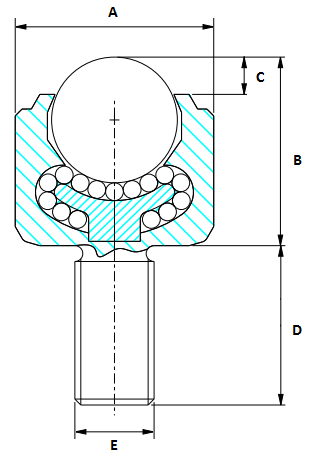

| C - See Diagram (mm) | 6.4 |
| E - See Diagram (mm) | M12 x 1.75 |
| Overall Dia - A (mm) | 50 |
| Ball Diameter (mm) | 25.4 |
| Load (kg) | 375 |
| Part Number | 9130 |
| Thread Height - D (mm) | 25 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
